Cluster Installations at the LfBS |
|

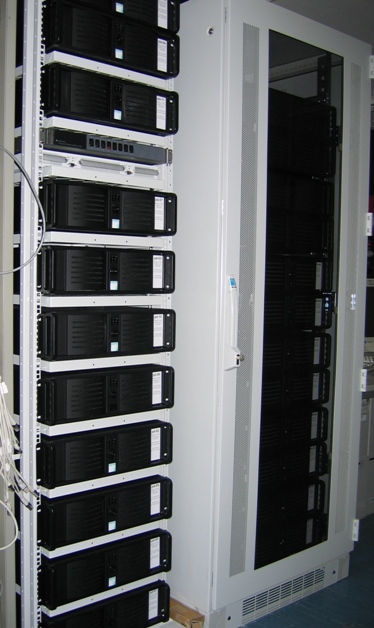

PD - PentiumD Cluster
Research and Development |
System Description:
| Number of Nodes: | 16 |
| Number of Processors: | 16*2 (DualCore) |
| Total Memory: | 96 GByte |
| Interconnect: | Scalable Coherent Interface, 4*4 2D-Torus (D352)
Infiniband x4 (Mellanox MHGS18-XT) |
| Node Systems | Intel PentiumD 2.8 GHz 1 MByte Cache |
| Node System Boards | Asus P5MT-M, Intel E7230 Chipset |
| Node Memory | 2 GByte DDR2-533 |
| Node I/O: | 1*PCIe(x8), 1*PCIe(x4), 2*32 Bit PCI/33 |
| Node Network | 2 x 1 Gbit Ethernet on Board
Broadcom BCM5721 |
| Switches | Infiniband Mellanox MTS-2400-DDR
Ethernet Cisco 3500 |
|  |

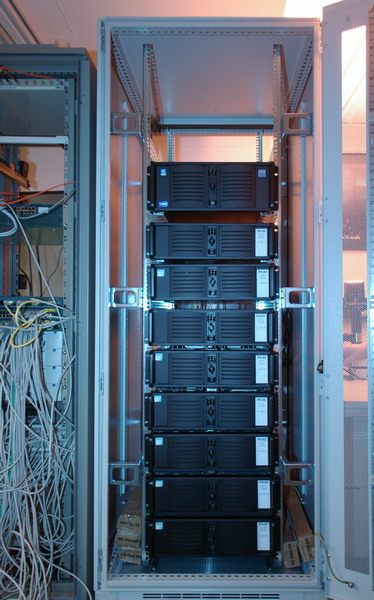

P4 - Pentium 4 (Xeon) Cluster
Teaching, Research and Development |
System Description:
| Number of Nodes: | 8 |
| Number of Processors: | 16 |
| Total Memory: | 8 GByte |
| Interconnect: | Scalable Coherent Interface, 2*4 2D-Torus (D334) |
| Node Systems | Dual Intel Xeon 2.4 GHz 512 kByte Cache |
| Node System Boards | Supermicro P4DM-E, Intel E7500 Chipset |
| Node Memory | 1 GByte DDR ECC (400 MHz) |
| Node I/O: | 3*32 Bit PCI/33
1*64 Bit PCI-X/133
2*64 Bit PCI-X/100 |
| Node Network | 100 Mbit Fast Ethernet on Board
1000 Mbit Ethernet Intel |
|  |
|
|
|
|
